9D Direct Inversion for Fault Slip Including Vorticity with Confidence Intervals

Fault-slip inversion method after Hansen (2013) with bootstrapped confidence intervals

Usage

slip_inversion_hansen_boot(
  x,
  friction = 0.6,
  flip = FALSE,
  type = c("9d", "6d"),
  n_iter = 100,
  conf.level = 0.95,
  ...
)

Arguments

x

object of class "Pair" or "Fault" with at least 7 rows.

friction

numeric. Coefficient of friction (0.6 by default)

flip

logical. Flip if you want to have the negative stress tensor, i.e. sigma 1 and 3 will be flipped.

type

character. Inversion method, either "9d" (the default) for using the 9-dimensional or "6d" for the 6-dimensional parameter space.

n_iter

integer. Number of bootstrap samples (10 by default)

conf.level

numeric. Confidence level of the interval (0.95 by default)

...

optional parameters passed to confidence_ellipse()

Value

See slip_inversion_hansen() and slip_inversion_michael()

See also

Other stress-inversion: Fault_PT(), slip_inversion(), slip_inversion_angelier(), slip_inversion_hansen(), slip_inversion_michael(), slip_inversion_simple()

Examples

set.seed(20250411)
res <- slip_inversion_hansen_boot(osmundsen2010, n_iter = 100, n = 1000, res = 100)

# some stress shape
phi_val <- round(res$phi_CI, 2)

# vorticity
w_val <- round(res$vorticity_mag_CI, 2)

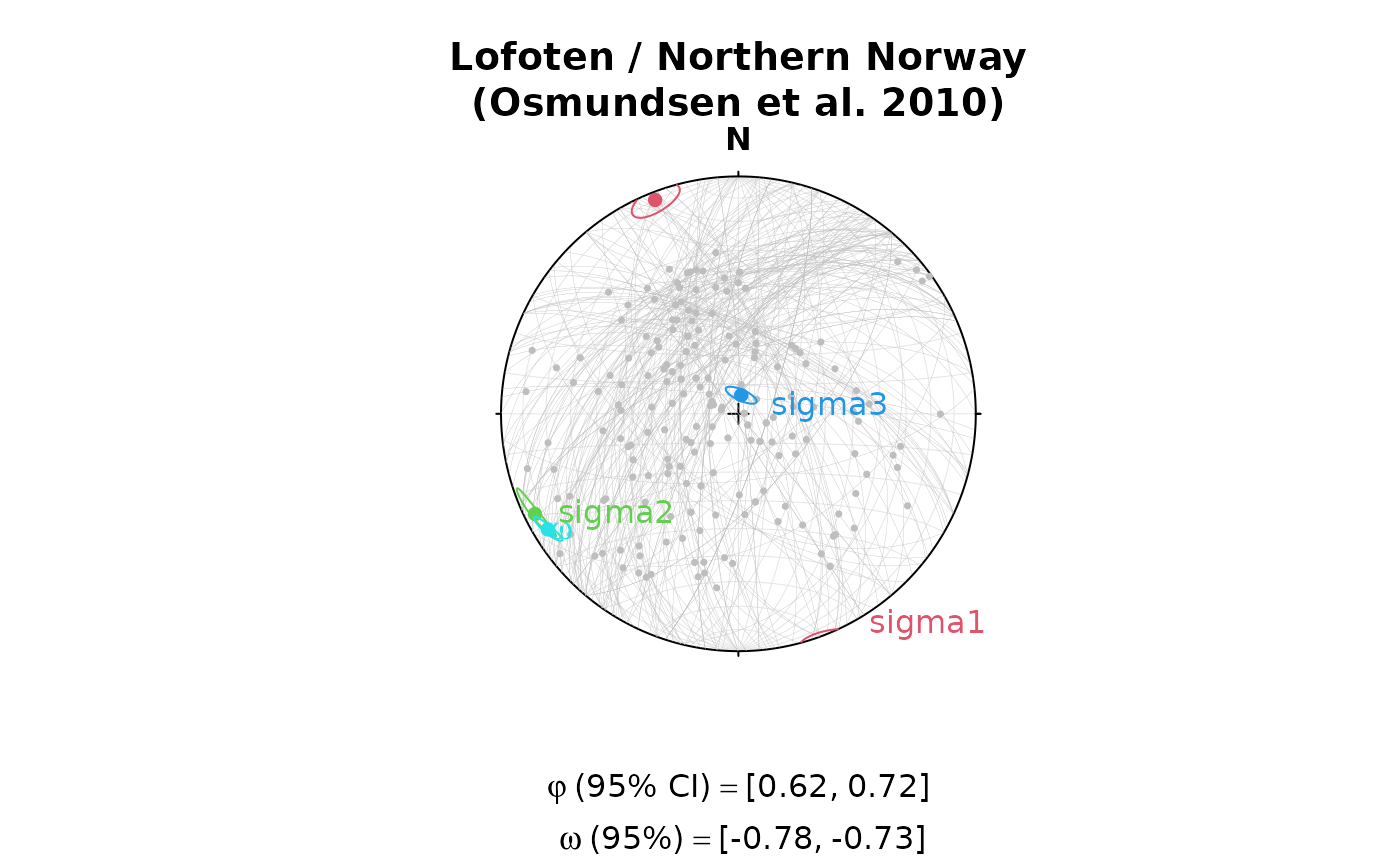

# Plot the faults
plot(osmundsen2010, col = "grey", lwd = 0.1, cex = 0.5)
stereo_confidence(res$principal_axes_CI$sigma1, col = 2)
stereo_confidence(res$principal_axes_CI$sigma2, col = 3)
stereo_confidence(res$principal_axes_CI$sigma3, col = 4)
stereo_confidence(res$vorticity_axis_CI, col = 5)
text(res$principal_axes, label = rownames(res$principal_axes), col = 2:4, adj = -.25)
text(res$vorticity_axis, labels = bquote(omega), col = 5, adj = -.5)
title(
  main = "Lofoten / Northern Norway\n(Osmundsen et al. 2010)",
  sub = bquote(atop(
    varphi ~ "(95% CI)" == "[" * .(phi_val[1]) * "," ~ .(phi_val[2]) * "]",
    ~omega ~ "(95%)" == "[" * .(w_val[1]) * "," ~ .(w_val[2]) * "]"
  ))
)
