Dip-Pitch-Plunge Triangular Diagram — balebrun

Ternary fabric orientation diagram after Balé and Brun (1989) showing the pitch and plunge of stretching lineation (X) and the dip of the foliation plane (XY).

Usage

balebrun_plot(
  x,
  labels = NULL,
  main = "Dip-Pitch-Plunge Diagram",
  extra_labels = TRUE,
  add = FALSE,
  ...
)

Arguments

x: object of class "Pair"
labels: character. Text labels
main: character. The title of the plot.
extra_labels: logical. Should some extra labels be added to the plot?
add: logical. Should data be plotted to an existing plot?
...: optional plotting parameters passed to graphics::points()

Value

matrix of plotting parameters

References

Balé, P., & Brun, J.-P. (1989). Late Precambrian thrust and wrench zones in northern Brittany (France). Journal of Structural Geology, 11(4), 391–405. https://doi.org/10.1016/0191-8141(89)90017-5

Examples

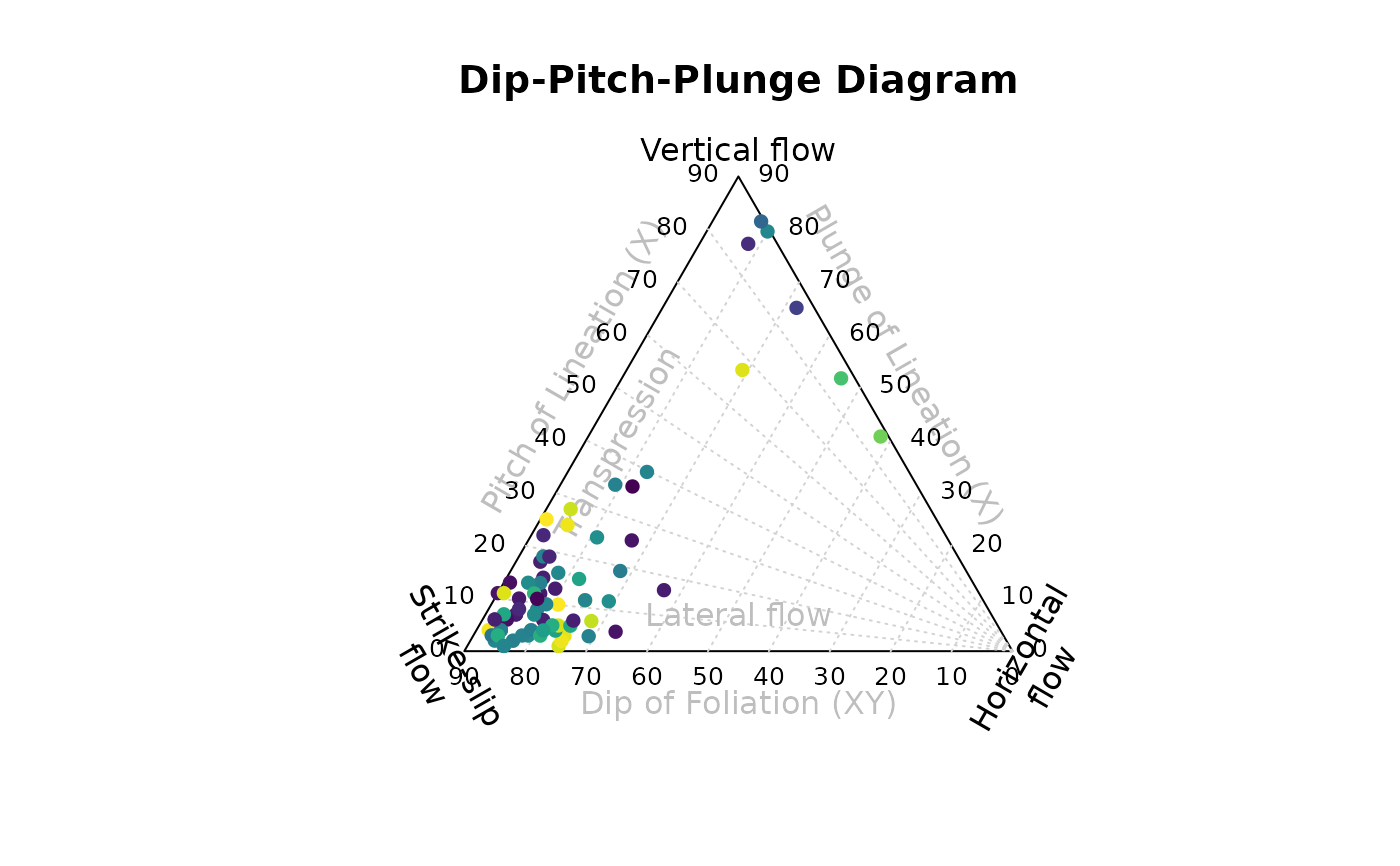

balebrun_plot(simongomez, col = assign_col(simongomez[, 'azimuth']), pch = 16)

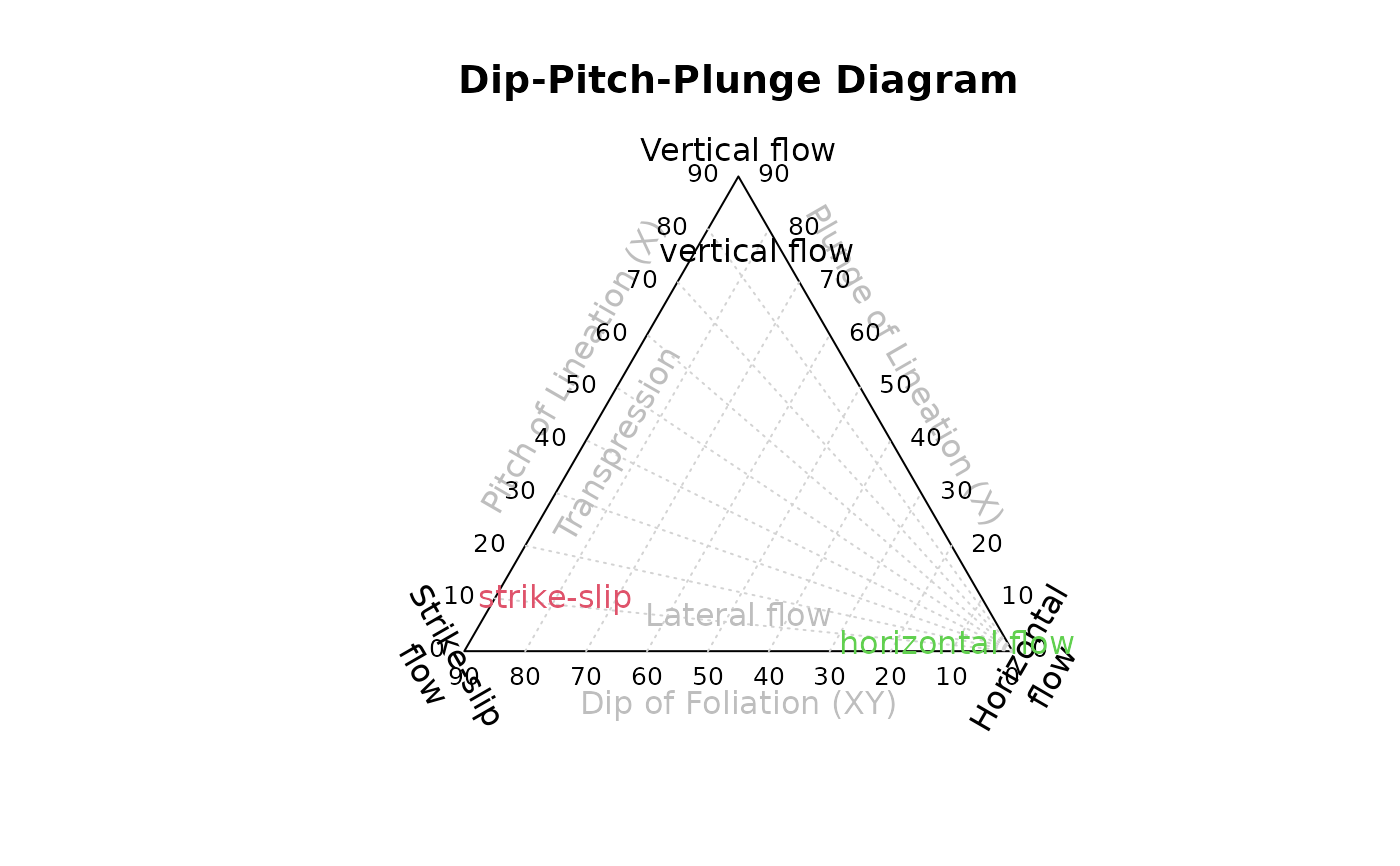

balebrun_plot(Pair_from_pitch(Plane(0, 80), 80), "vertical flow", col = 1, add = FALSE)
balebrun_plot(Pair_from_pitch(Plane(0, 80), 10), "strike-slip", col = 2, add = TRUE)
balebrun_plot(Pair_from_pitch(Plane(0, 10), 10), "horizontal flow", col = 3, add = TRUE)
