Horizontal directions

Usage

stereo_shmax(
  azi,
  ...,
  type = c("arrows", "line"),
  shmin = FALSE,
  BALL.radius = 1,
  arrow.offset = 0.02,
  arrow.length = 0.1,
  arrow.head = arrow.length
)

Arguments

azi: numeric. Angle of maximum horizontal stress in degrees
...: ... arguments passed to graphics::segments() or graphics::arrows()
type: character. Either 'line' or 'arrows' for a straight line or arrows at the perimeter of the plot.
shmin: logical. Whether the minimum horizontal stress should be indicated too?
BALL.radius: numeric. Radius of the stereo plot.
arrow.offset: numeric. Offset of the arrows from the perimeter.
arrow.length: numeric. Length of the arrows.
arrow.head: numeric. Length of the arrow head.

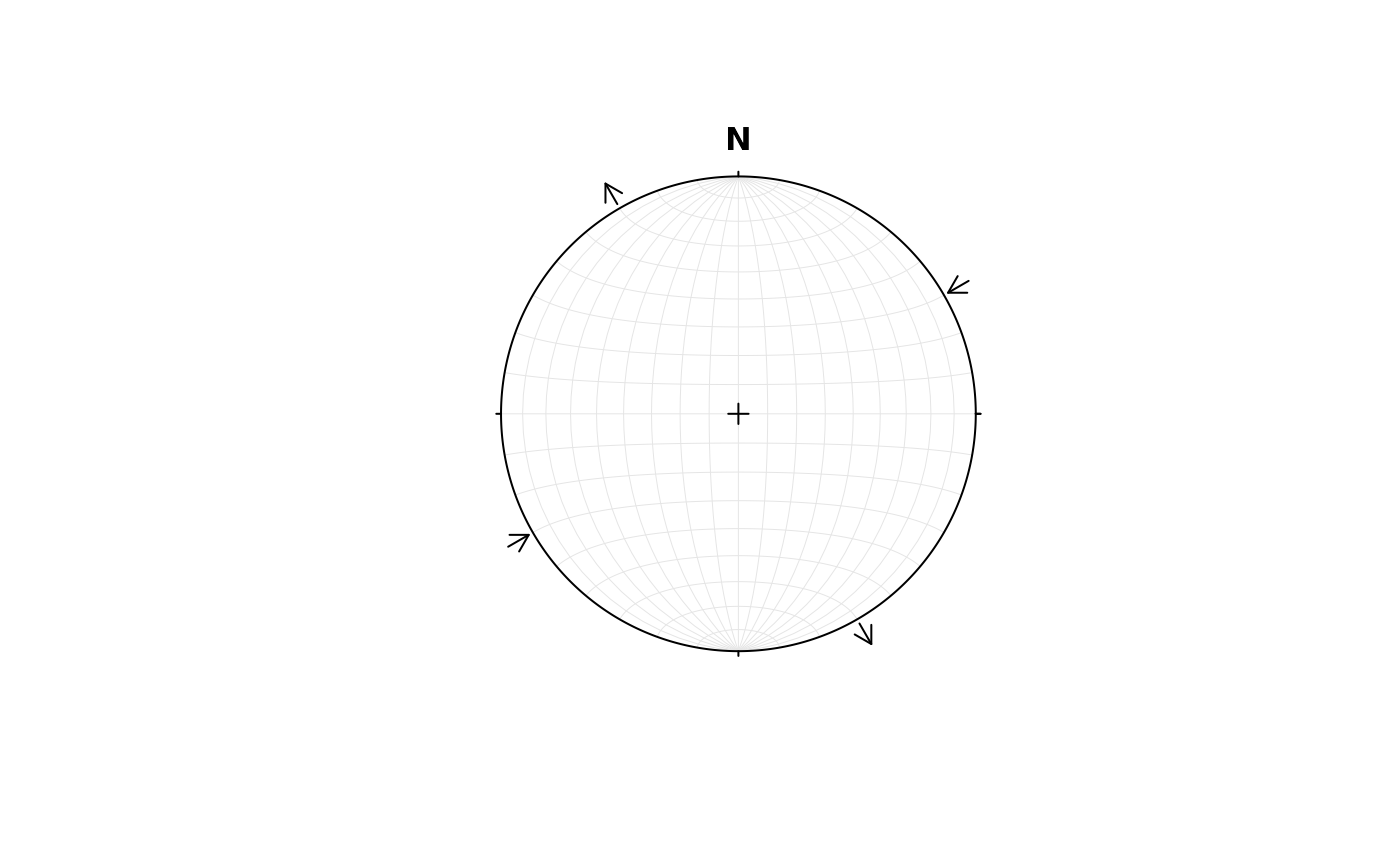

Examples

stereoplot()
stereo_shmax(30, shmin = TRUE)
