Center grid lines on a given vector

Center grid lines on a given vector

Usage

rotate_stereogrid(
  x,
  d = 10,
  col = "gray90",
  lwd = 0.5,
  equator = TRUE,
  equator_lwd = 1.5 * lwd,
  lty = 1,
  ...
)

Arguments

x

center position of grid lines.

d

angle spacing between grid lines of the projection

col

Color of guide lines. Defaults to getOption("structr.col").

lwd

Width of guide lines. Defaults to getOption("structr.lwd").

equator

logical. Whether the grid equator should be shown no matter how the grid is constructed via d. TRUE by default.

equator_lwd

numeric. The line width of the drawn equator grid line. By default, the equator is 1.5 times thicker then lwd.

lty

Type of guide lines. Defaults to getOption("structr.lty").

...

arguments passed to graphics::lines()

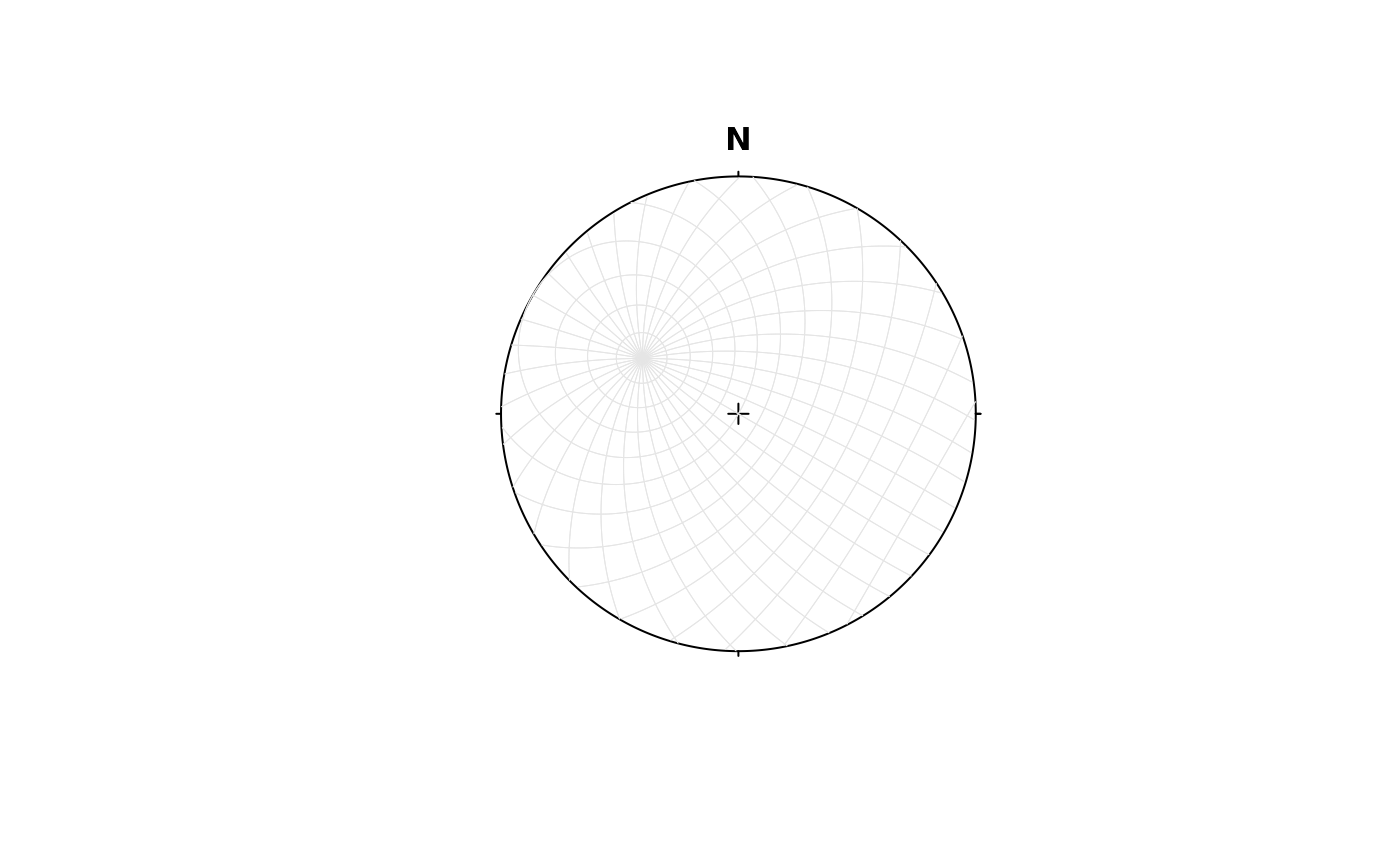

Examples

stereoplot(guide = FALSE)
rotate_stereogrid(Plane(120, 50), earea = FALSE)
