Failure Criterion

Adds the Griffith-Coulomb-fracture criterion to a plot.

Usage

failure_criterion(
  sigma_n = seq(-100, 100, 0.01),
  cohesion = 1,
  friction = 0.6,
  ...
)

Arguments

sigma_n

numeric. A vector of normal stresses, for which the critical shear stress should be calculated.

cohesion

numeric. Cohesion

friction

numeric. Coefficient of friction

...

optional plotting arguments passed to graphics::lines()

Value

a matrix of the normal and shear stresses.

Examples

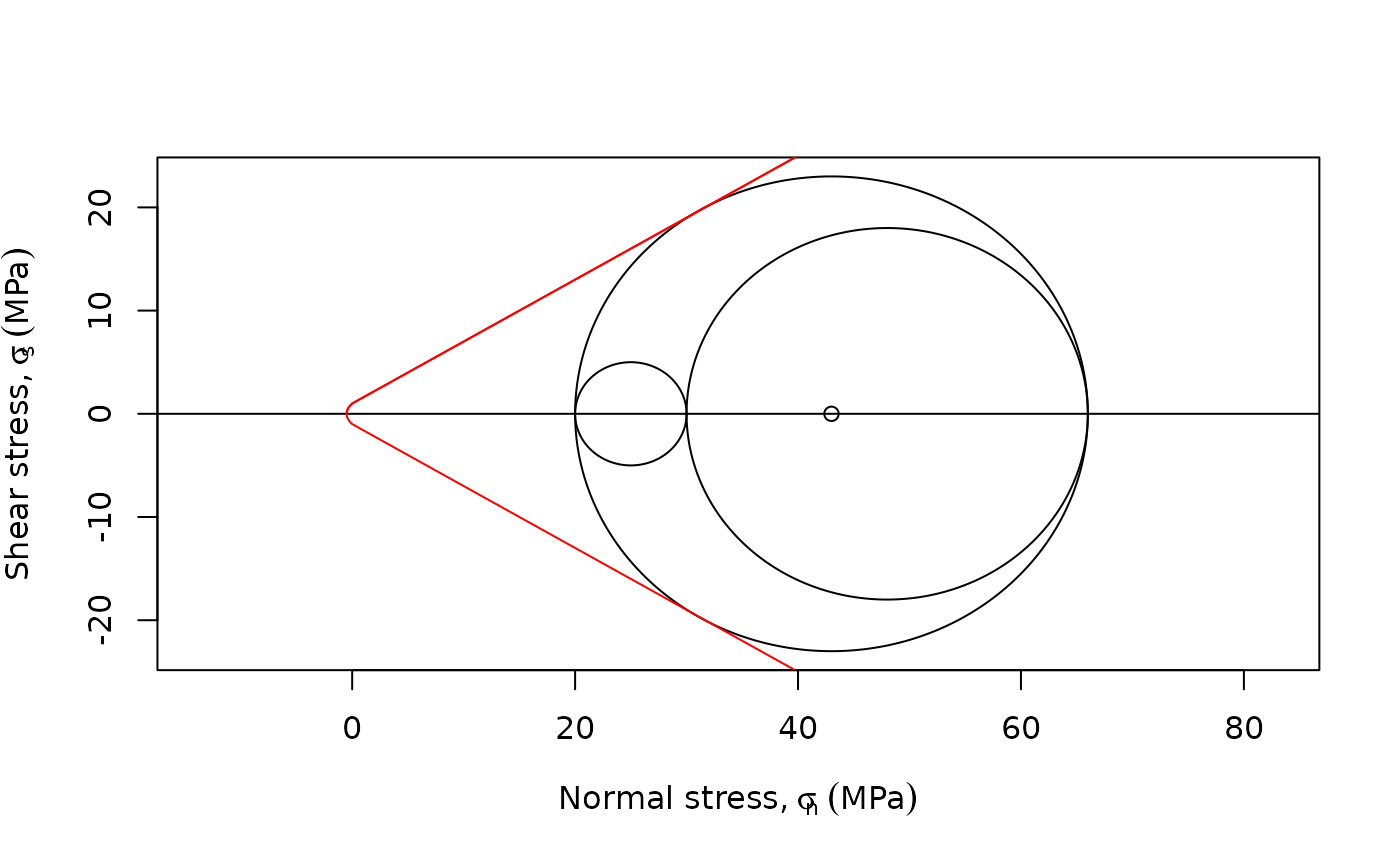

Mohr_plot(sigma1 = 66, sigma2 = 30, sigma3 = 20, xlim = c(-50, 125), full.circle = TRUE)
failure_criterion(col = "red")
