Mohr Circle plot

plots the Mohr Circle

Usage

Mohr_plot(
  sigma_x = NA,
  sigma_z = NA,
  tau_xz = NA,
  sigma1 = NA,
  sigma2 = NA,
  sigma3 = NA,
  unit = "MPa",
  col = "black",
  n = 512,
  full.circle = FALSE,
  include.zero = TRUE,
  xlim = NULL,
  ylim = NULL,
  ...
)

Arguments

sigma_x

numeric. Magnitude of normal stress acting in the horizontal direction

sigma_z

numeric. Magnitude of normal stress acting in the vertical direction

tau_xz

numeric. Magnitude of shear stress acting on the same plane as "sigma_x"

sigma1

numeric. Magnitude of major principal stress

sigma2

numeric. (optional) Magnitude of intermediate principal stress. This will add the additional Mohr circles between the principal stresses.

sigma3

numeric. Magnitude of minor principal stress

unit

character. The unit used for magnitude of stress ("MPa" by default). NULL if unitless.

col

color for Mohr circle.

n

integer. Resolution given amount of points along the generated path representing the full Mohr circle (512 by default).

full.circle

logical. Should the complete Mohr circle be shown, or only the upper (positive shear stress) part of the circle?

include.zero

logical. the plot range be extended to include normal_stress = 0?

xlim, ylim

range of plot

...

optional graphical parameters.

Note

One of the following two sets of data must be entered

1. "sigma_x", "sigma_z", "tau_xz"

2. "sigma1", "sigma3"

See also

failure_criterion() to add the failure criterion; Mohr_calc() to calculate the parameters; ggMohr() for ggplot2 functionality;

Examples

Mohr_plot(sigma_x = 80, sigma_z = 120, unit = "kPa", tau_xz = 20, col = "#B63679", lwd = 2)


Mohr_plot(sigma1 = 66, sigma2 = 30, sigma3 = 20, xlim = c(-50, 125), full.circle = TRUE)
failure_criterion(col = "#B63679") # adds failure criterion


## Deviatoric stress from stress ratio:
R <- 0.4 # Stress ratio after Gephart & Forsyth (1984)
sigma1 <- 1
sigma3 <- 0
sigma2 <- sigma1 - R * (sigma1 - sigma3)

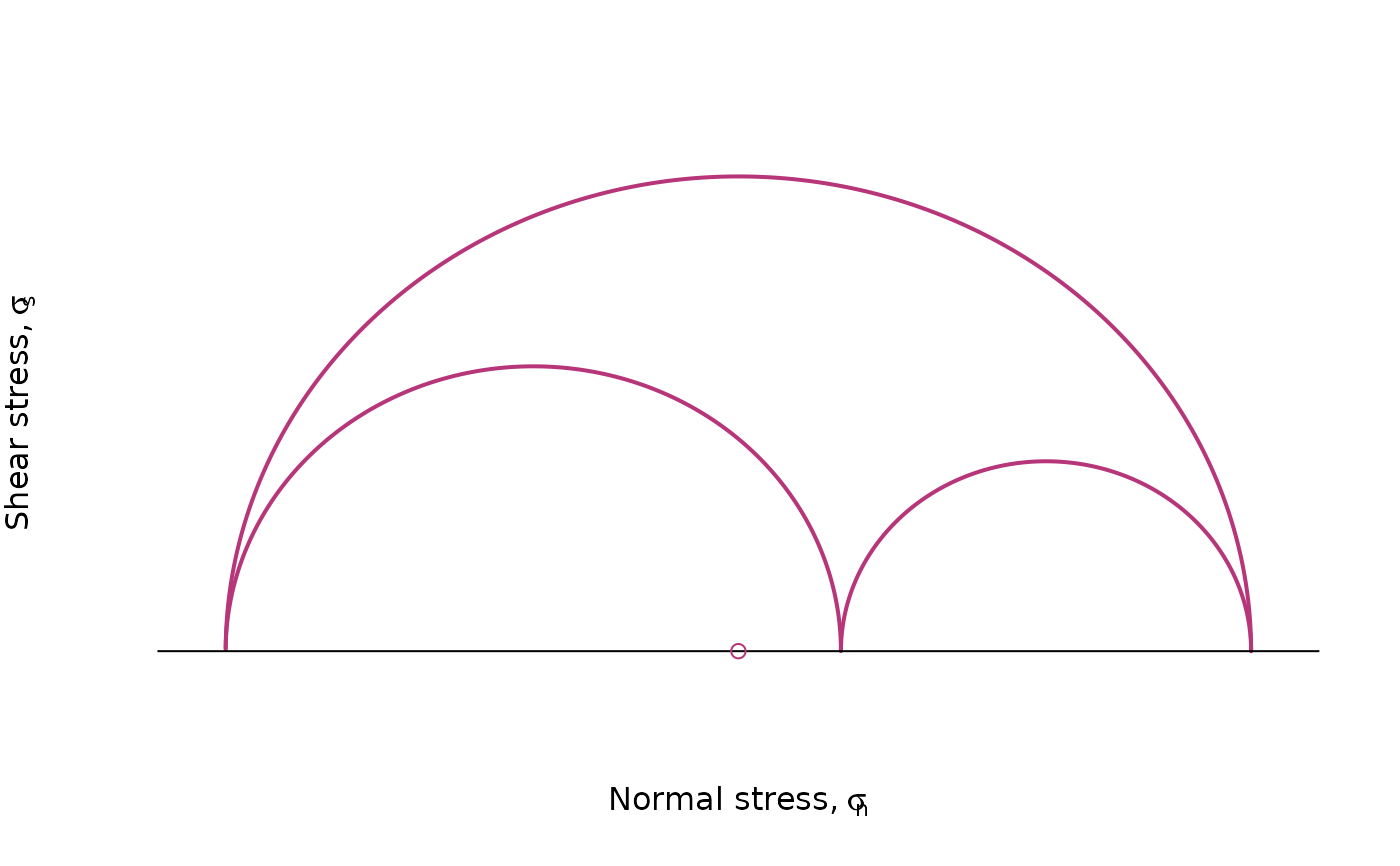

## unitless Mohr diagram
Mohr_plot(
  sigma1 = sigma1, sigma2 = sigma2, sigma3 = sigma3,
  col = "#B63679", lwd = 2, unit = NULL, include.zero = FALSE
)
