Stereographic projection of faults and pairs

Visualization of faults (planes and lines) in a stereographic projection.

Usage

stereo_fault(
  x,
  hoeppner = FALSE,
  greatcirles = TRUE,
  pch = 16,
  col = 1,
  lwd = 1,
  lty = 1,
  lab = NULL,
  cex = 1,
  text.pos = 4,
  upper.hem = FALSE,
  earea = TRUE
)

stereo_pair(
  x,
  pch = 16,
  col = 1,
  lwd = 1,
  lty = 1,
  lab = NULL,
  cex = 1,
  upper.hem = FALSE,
  earea = TRUE
)

Arguments

x: Object of class "Fault"
hoeppner: logical. TRUE for Hoeppner plot
greatcirles: logical. Whether greatcircles are displayed (TRUE, the default) or poles to planes (FALSE)
pch, col, lwd, lty: plotting parameters for planes and lines
lab: character. text labels
cex: character expansion of labels
text.pos: position for labels
upper.hem: logical. Whether the projection is shown for upper hemisphere (TRUE) or lower hemisphere (FALSE, the default).
earea: logical TRUE for Lambert equal-area projection (also "Schmidt net"; the default), or FALSE for meridional stereographic projection (also "Wulff net" or "Stereonet").

Note

"Plane" objects will be displayed as pole to the plane.

Examples

faults <- Fault(
  c(0, 90, 180, 270),
  c(80, 45, 80, 45),
  c(0, 170, 180, 315),
  c(80, 10, 80, 36),
  c(1, -1, 0, 1)
)

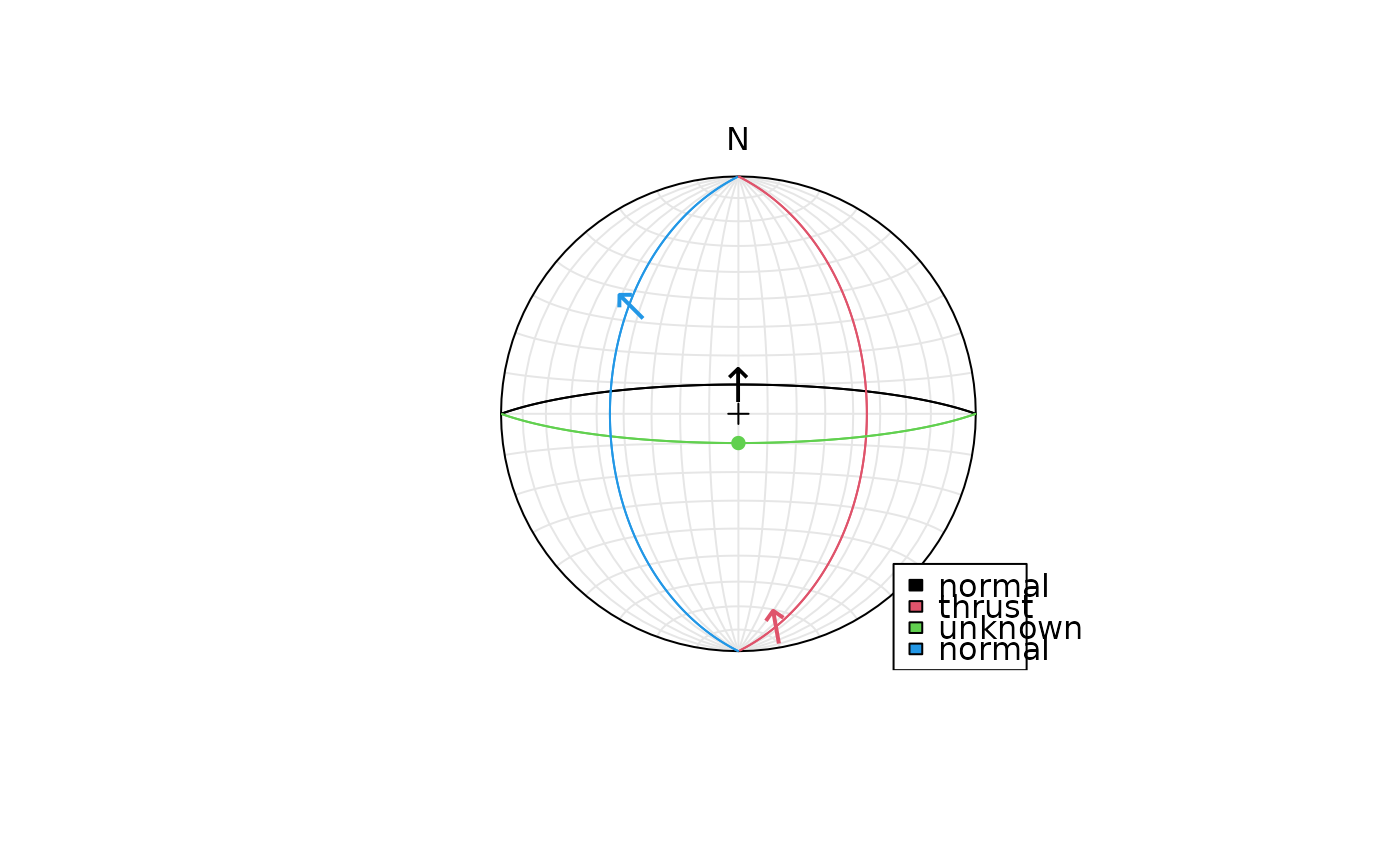

stereoplot()
stereo_fault(faults, col = 1:4)
# stereo_fault(faults, col =1:4, hoeppner = TRUE)
legend("bottomright", c("normal", "thrust", "unknown", "normal"), fill = 1:4)

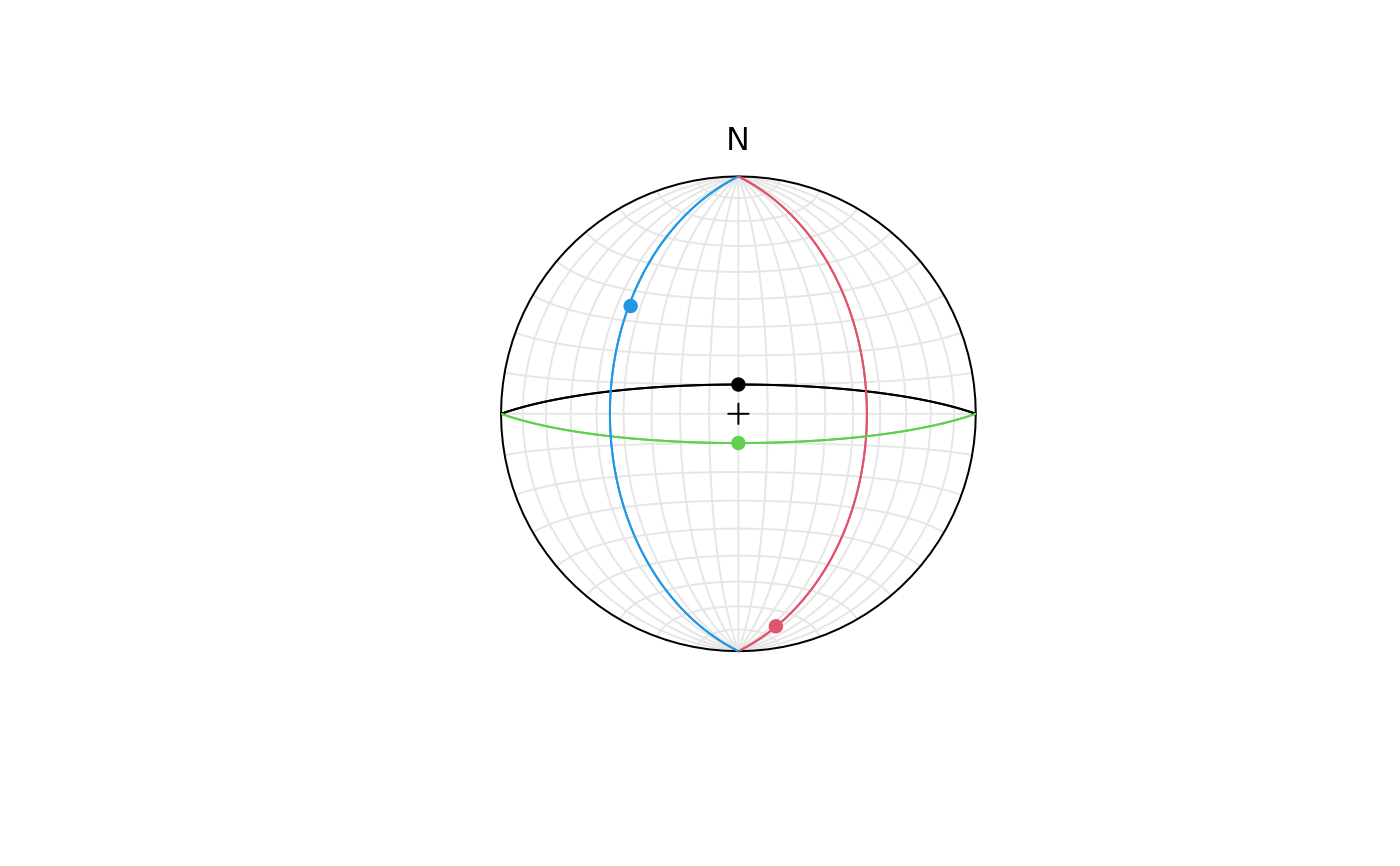

stereoplot()
stereo_pair(faults, col = 1:4)
