1. Basics

This tutorial introduces the basic data types and mathematical operations of the structr package for analyzing orientation data in structural geology.

library(structr)

Import

From a Strabospot project, download the json file and import it using the read_strabo_JSON() function.

This returns a list which contains all the information and metadata (including coordinates, descriptions etc) extracted from the StraboSpot project in the list element data, the tags used for the project in the list element tags, and the linear and planar orientation measurements in the list elements lines and planes, respectively.

Data types

Depending on the symmetry of the orientation data, different data types are used to represent orientations in 3D space. The main data types used in structural geology are Rays, Lines, Planes, Pairs, and Faults.

Rays (vectorial data)

A ray is a line with a preferred direction along that line, i.e. a line with a single start point extending indefinitely in only one direction (equivalent to a direction in 2D). Examples of ray-like data include a slip direction, paleomagnetic direction (unless magnetic reversals are involved), a vorticity vector describing the sense of slip on a fault, etc. A pole to a bedding plane is ray-like if the younging direction is known or line-like if it is unknown.

Ray(120, 30, sense = -1)
#> Ray object (n = 1):
#> azimuth  plunge
#>     300     -30

Lines (axial data)

A Line extends infinitely in both directions (equivalent to an axis in 2D). Examples of line-like data include a principal stress directions, strain ellipsoid directions (e.g. stretching lineation), intersection, fault striae, crystallographic axes, and pole to foliation planes. A pole to a bedding plane is line-like if the younging direction is unknown.

Line(120, 30)
#> Line object (n = 1):
#> azimuth  plunge
#>     120      30

Poles to planes

A pole to a plane is a line perpendicular to that plane. Examples include the pole to a bedding plane, the pole to a foliation, etc.

Plane(120, 30)
#> Plane object (n = 1):
#> dip_direction           dip
#>           120            30

Pairs and Faults (plane + line/ray)

A pair consists of a plane and a line contained in that plane. Examples are a stretching lineation on a foliation plane.

Pair(120, 30, 75, 15)
#> Pair object (n = 1):
#> dip_direction           dip       azimuth        plunge
#>           120            30            75            15

A Fault is a special case of a Pair, when the line component is a Ray object. In other words, when the slip direction or sense of motion is known.

Fault(120, 30, 75, 15, sense = -1)
#> Fault object (n = 1):
#> dip_direction           dip       azimuth        plunge         sense
#>           120            30            75            15            -1

Cartesian coordinates

Cartesian coordinates are three-element vectors that represent points or directions in a 3D Cartesian coordinate system given by the direction cosines along the X, Y, and Z axes.

Vec3(1, 0, 0)
#> Vector (Vec3) object (n = 1):
#> x y z
#> 1 0 0

Conversions

Any of the spherical objects (Ray, Line, Plane, Pair, Fault) can be transformed to Cartesian coordinates, or any other spherical data type, using Vec3(), Line(), Plane(), Ray(), Pair(), or Fault() functions.

Line(120, 30) |> Vec3()
#> Vector (Vec3) object (n = 1):
#>          x          y          z
#> -0.4330127  0.7500000  0.5000000
Plane(120, 30) |> Line()
#> Line object (n = 1):
#> azimuth  plunge
#>     300      60

Pair(Plane(120, 30), Line(120, 30))
#> Pair object (n = 1):
#> dip_direction           dip       azimuth        plunge
#>           120            30           120            30

You can also convert into other data types without transformation, using as.<data type>() functions. For example, converting a Line into a Plane:

Line(120, 30) |> as.Plane()
#> Plane object (n = 1):
#> dip_direction           dip
#>           120            30

Example

Usually orientation data is stored in a table containing the column dip direction (or strike) and the dip angle of a measured plane…

data(example_planes_df)
head(example_planes_df)
#> # A tibble: 6 × 4
#>   dipdir   dip quality feature_type
#>    <dbl> <dbl>   <dbl> <chr>
#> 1    142    52       3 foliation
#> 2    135    43       3 foliation
#> 3    148    42       3 foliation
#> 4    150    46       3 foliation
#> 5    139    51       3 foliation
#> 6    158    51       3 foliation

or the trend (azimuth) and plunge (inclination) of a measured line…

data(example_lines_df)
head(example_lines_df)
#> # A tibble: 6 × 4
#>   trend plunge quality feature_type
#>   <dbl>  <dbl>   <dbl> <chr>
#> 1    54     13       3 stretching
#> 2    61     15       3 stretching
#> 3    74     14      NA stretching
#> 4    80     19      NA stretching
#> 5    63     17      NA stretching
#> 6    76     10      NA stretching

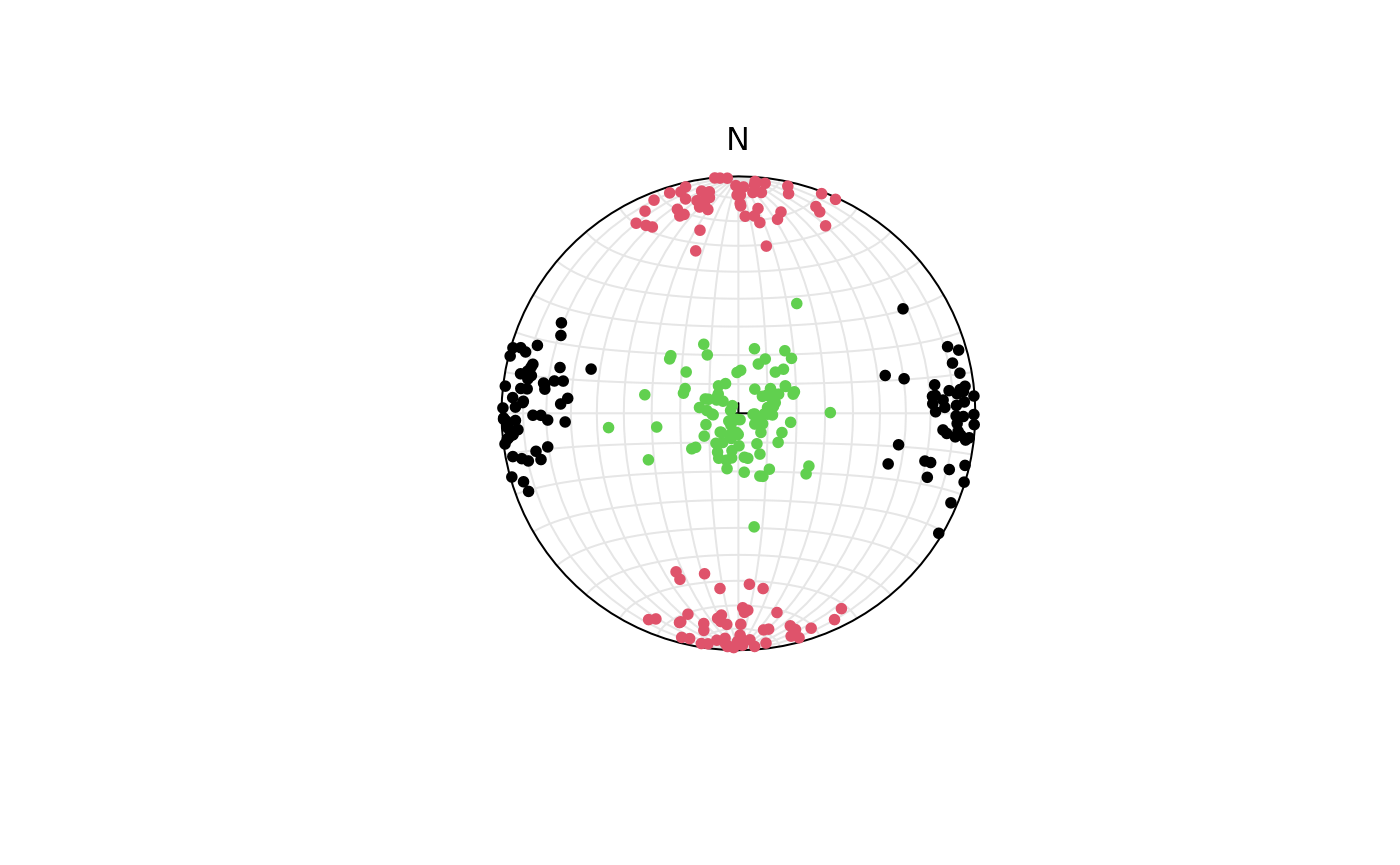

To convert these data frames to spherical objects, use the Plane() and Line() functions from the structr package. These functions take the dip direction and dip angle for planes, and the trend and plunge for lines as arguments.

data(example_planes)
planes <- Plane(example_planes_df$dipdir, example_planes_df$dip)
lines <- Line(example_lines_df$trend, example_lines_df$plunge)

If the raw data was imported using read_strabo_JSON() this step is not necessary as the data will come already in the correct format.

The spherical objects can be easily converted into Cartesian coordinate vectors using the function Vec3():

lines_vector <- Vec3(lines)
head(lines_vector)
#> Vector (Vec3) object (n = 6):
#>              x         y         z
#> [1,] 0.5727204 0.7882819 0.2249511
#> [2,] 0.4682901 0.8448178 0.2588190
#> [3,] 0.2674497 0.9327081 0.2419219
#> [4,] 0.1641876 0.9311540 0.3255682
#> [5,] 0.4341533 0.8520738 0.2923717
#> [6,] 0.2382466 0.9555548 0.1736482

Convert a Plane’s pole to a Line:

planes_as_line <- Line(planes)
head(planes_as_line)
#> Line object (n = 6):
#>      azimuth plunge
#> [1,]     322     38
#> [2,]     315     47
#> [3,]     328     48
#> [4,]     330     44
#> [5,]     319     39
#> [6,]     338     39

Some helpers

Converts strike into dip direction using right-hand rule

rhr2dd(271)
#> [1] 1
dd2rhr(1)
#> [1] 271

Vector operations

Since the spherical or vector objects are easily convertible, they can be used for all sort of vector operations, such as the magnitude (or length), the angle between vectors, dot product, cross product, projection and rotation.

Define some example vectors:

line1 <- Line(120, 50)
line2 <- Line(10, 30)

The vector length (or magnitude):

vector_length(line1)
#> [1] 1

Orientation vectors are by definition unit vectors, i.e. their length is equal to 1.

The angle between two vectors

angle(line1, line2)
#> [1] 78.89371

The dot product (or scalar product) of two vectors

dotprod(line1, line2)
#> [1] 0.1926297

Intuitively, the dot product tells us how much two vectors point in the same direction.

The cross product of two vectors:

crossprod(line1, line2)
#> Line object (n = 1):
#>   azimuth    plunge
#> 258.66786  32.21399

This gives the vector that is perpendicular to the plane spanned by the two vectors.

The projection of a vector on another vector:

project(line1, line2)
#> Line object (n = 1):
#> azimuth  plunge
#>      10      30

Because the vectors are both unit vectors, the projected vector is equal to the second vector.

The rotation of a vector about another vector (rotation axis) by a specified rotation angle:

rotate(line1, rotaxis = line2, rotangle = 45)
#> Line object (n = 1):
#>   azimuth    plunge
#> 210.50391  70.01332

Linear transformation transforms vectors using a transformation matrix (second-order tensor).

trans_mat <- matrix(runif(9), 3, 3)
transform_linear(line1, trans_mat)
#> Vector (Vec3) object (n = 1):
#>           x           y           z
#>  0.44288029 -0.04205583  0.62796680
