Circular Kernel Density Plot

Source: R/rose.R
plot_density.Rd

Plots multiples of a von Mises density or wrapped Cauchy distribution in a circular plot

Usage

plot_density(
  x,
  bw = NULL,
  kernel = c("vonmises", "wrappedcauchy"),
  weights = NULL,
  axial = TRUE,
  n = 512L,
  norm.density = TRUE,
  kappa = NULL,
  rho = NULL,
  fill = FALSE,
  scale = 0,
  shrink = 1,
  add = TRUE,
  main = NULL,
  labels = TRUE,
  at = seq(0, 360 - 45, 45),
  cborder = TRUE,
  grid = FALSE,
  ...
)

Arguments

x

Either an object of class "density" or a numeric vector of angles (in degrees) from which the estimate is to be computed

bw, kappa, rho

numeric. Smoothing bandwidth expressed as the concentration parameter \(\kappa\) for the von Mises distribution or \(\rho\) for the wrapped Cauchy distribution. Small and large values for the von Mises and wrapped Cauchy distribution, respectively, gives smooth density lines. If not specified, parameter will be estimated using est.kappa() for the von Mises distribution, or set to \(p \exp(-1)\) for the wrapped Cauchy distribution (where \(p = 2\) when axial=TRUE and 1 otherwise).

kernel

character. The smoothing kernel to be used; one of "vonmises" (the default) or "wrappedcauchy" for the von Mises or the Wrapped Cauchy distribution.

weights

numeric. A vector of observation weights, of the same length as x, to give individual observations weight in the density estimate. Should sum to 1; a warning is issued if it doesn't (unless subdensity = TRUE). Defaults to equal weight 1/length(x) per observation, matching stats::density().

axial

Logical. Whether data are uniaxial (axial=FALSE) or biaxial (TRUE, the default).

n

integer. Number of equally spaced angles at which the density is to be estimated.

norm.density

logical. Normalize the density?

fill

logical. Whether to fill the density curve or draw just a line (the default)

scale

numeric. radius of plotted circle. Default is 1.1.

shrink

numeric. parameter that controls the size of the plotted function. Default is 1.

add

logical. Add to existing plot? (TRUE by default).

main

Character string specifying the title of the plot.

labels

Either a logical value indicating whether to plot labels next to the tick marks, or a vector of labels for the tick marks.

at

Optional vector of angles at which tick marks should be plotted. Set at=numeric(0) to suppress tick marks.

cborder

logical. Border of rose plot.

grid

logical. Whether a grid should be added.

...

Further graphical parameters may also be supplied as arguments.

Value

plot or calculated densities

See also

circular_density()

Other circular-plot: plot_points(), rose(), rose_geom, rose_stats()

Examples

# Filled von Mises kernel density curve inside the plot
plot_density(san_andreas$azi,
  kappa = 100,
  fill = TRUE, col = "#51127C80", border = "#51127CFF",
  grid = TRUE,
  add = FALSE
)

# Superimpose a wrapped Cauchy kernel distribution curve
plot_density(san_andreas$azi,
  rho = 0.9, kernel = "wrappedcauchy",
  fill = FALSE, col = "#FB8861FF",
  add = TRUE
)


# Superimpose a von Mises kernel density curve on a rose diagram:
rose(san_andreas$azi, grid = TRUE)
plot_density(san_andreas$azi,
  bw = 100, col = "#51127CFF",
  add = TRUE, lwd = 3
)

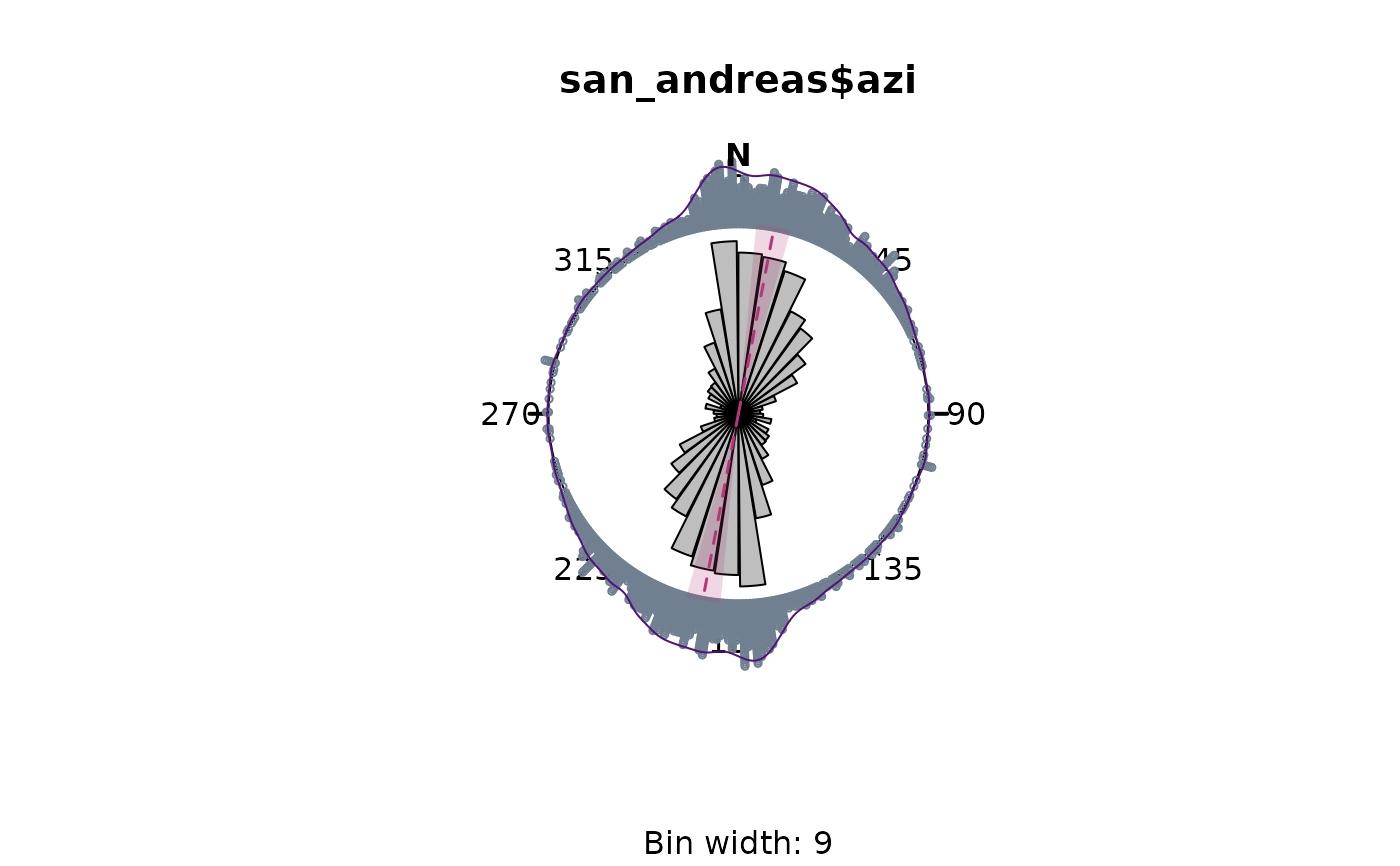

# Corona plot (density curve outside of a rose diagram plot):
w <- weighting(san_andreas$unc)
rose(san_andreas$azi, weights = w, dots = TRUE, stack = TRUE, dot_cex = 0.5, dot_pch = 21)
plot_density(san_andreas$azi, weights = w,
  bw = 100,
  scale = 1.1, shrink = 3, xpd = NA,
  col = "#51127CFF"
)
