Optimal number of clusters — path_nbclust • thermoclustr

Determines the optimal number of clusters in a dissimilarity matrix using average silhouette width.

Usage

path_nbclust(
  x,
  FUNcluster = path_hcut,
  k.max = 10,
  n.threshold = Inf,
  linecolor = "#B63679FF",
  ...
)

Arguments

x: either an object of class "HeFTy" (output of read_hefty()), "tTdiss (output of path_diss()), or a data.frame containing the time, temperature, and segment columns of the modeled paths. If x is not a "tTdiss" object, it will be calculated first by path_diss() using its default settings.
FUNcluster: cluster function. Default is path_hcut().
k.max: integer. the maximum number of clusters to consider, must be at least two.
n.threshold: integer. If the number of paths is greater than this value, a random sample of size n.threshold of paths will be selected from the dissimilarity matrix to determine the optimal number of clusters. Must be greater than k.max. Default is Inf, i.e., no sampling. Consider to specify this parameter if processing takes too much time.
linecolor: line color
...: optionally further arguments for FUNcluster

Value

list. $optimal (integer) is the optimal number of clusters, $plot is a ggplot showing the average silhouette width for each number of clusters.

Examples

# example data
data(tT_paths)
set.seed(20250411)
res1 <- path_nbclust(tT_paths, n.threshold = 100)

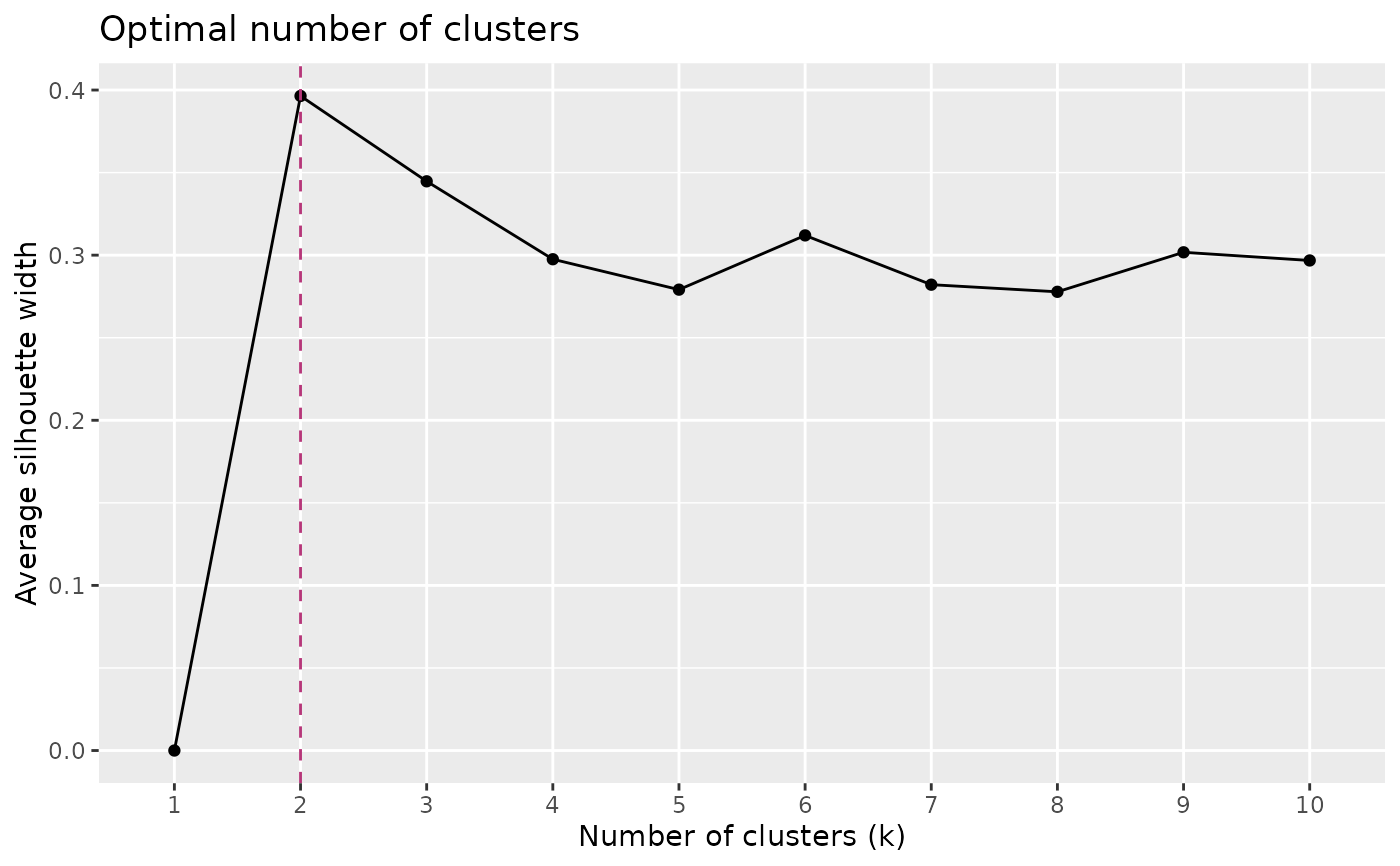

res1
#> $optimal
#> [1] 2
#>
#> $plot

#>

tT_paths_subset <- subset(tT_paths$paths, Comp_GOF >= 0.4)
res2 <- path_nbclust(tT_paths_subset)

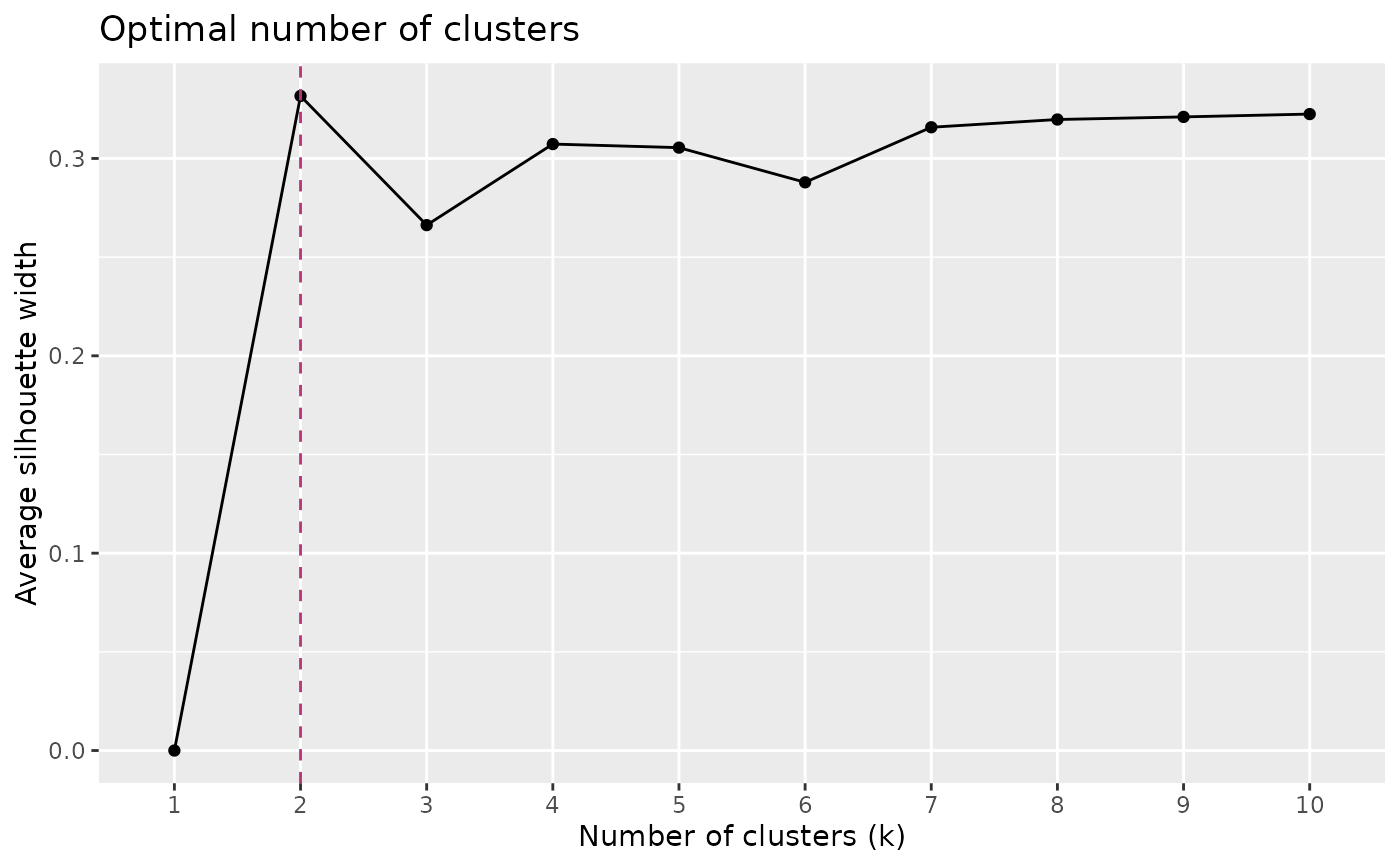

res2
#> $optimal
#> [1] 2
#>
#> $plot

#>
