Fabric plot of Vollmer (1990)

Source: R/fabric_plots.R
vollmer_plot.Rd

Creates a fabric plot using the eigenvalue method

Usage

vollmer_plot(x, labels = NULL, add = FALSE, ngrid = c(5, 5, 5), ...)

Arguments

x

object of class "Vec3", "Line", or "Plane".

labels

character. text labels

add

logical. Should data be plotted to an existing plot?

ngrid

integer or 3-element vector specifying the amount of gridlines for the P, G, and G axes. Constant grid spacing when only one integer is given. NULL when no grid.

...

optional graphical parameters

Value

plot and when stored as an object, the P, G, and R values as a numeric vector.

References

Vollmer, F. W. (1990). An application of eigenvalue methods to structural domain analysis. Geological Society of America Bulletin, 102, 786<U+2013>791.

See also

woodcock_plot(), fabric_indexes()

Examples

set.seed(20250411)
mu <- Line(120, 50)
a <- rvmf(100, mu = mu, k = 10)

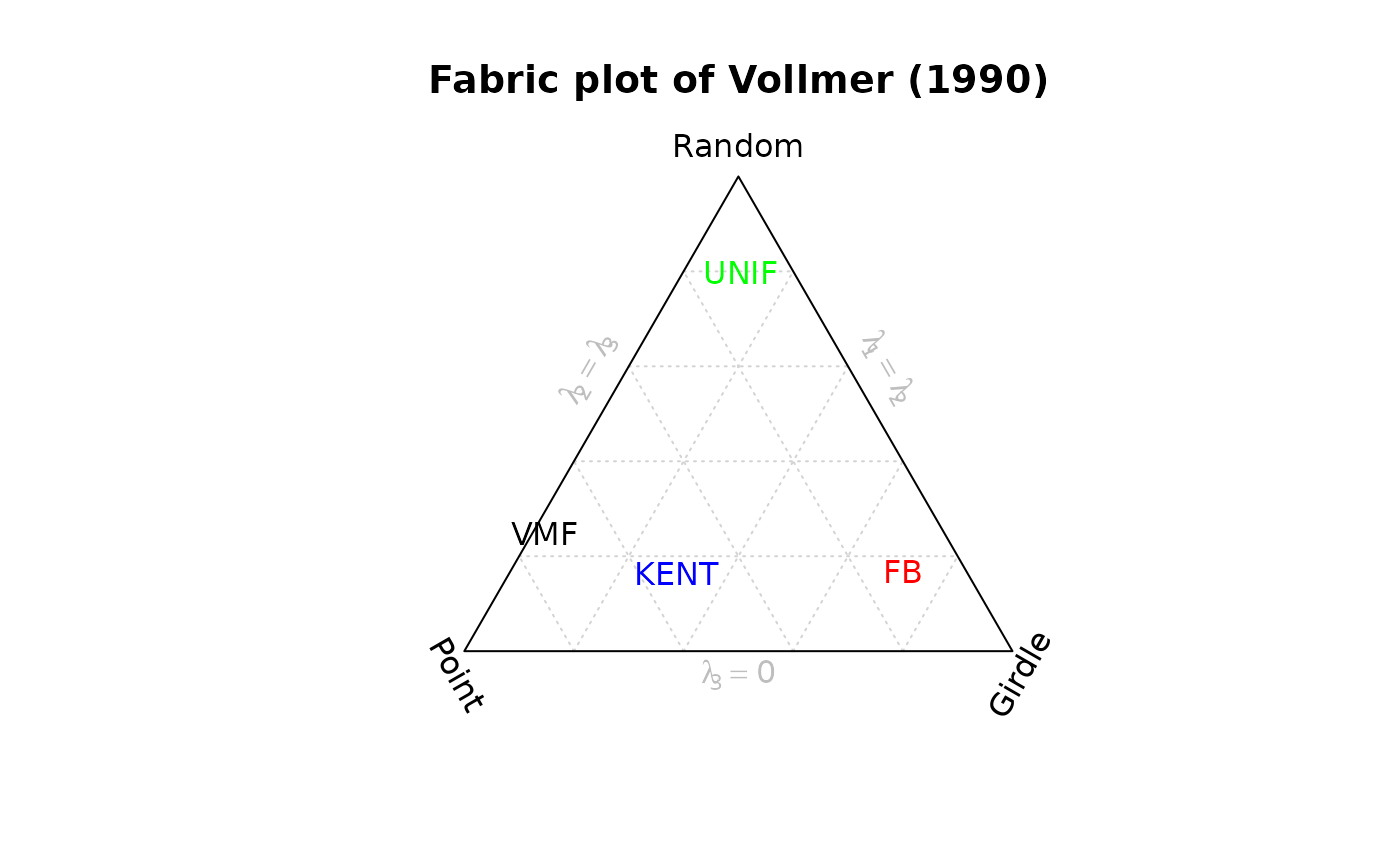

vollmer_plot(a, lab = "VMF")
#> Warning: NAs introduced by coercion

set.seed(20250411)
b <- rfb(100, mu = mu, k = 1, A = diag(c(10, 0, 0)))
vollmer_plot(b, lab = "FB", add = TRUE, col = "red")

set.seed(20250411)
c <- runif.spherical(n = 100, "Line", method = "rotasym")
vollmer_plot(c, lab = "UNIF", add = TRUE, col = "green")

set.seed(20250411)
d <- rkent(100, mu = mu, k = 10, b = 4)
vollmer_plot(d, lab = "KENT", add = TRUE, col = "blue")
title("Fabric plot of Vollmer (1990)")
