Structural control of orogenic gold deposits in Archean settings

We study how fluids and remobilized gold can flow in deep crustal conditions and how they channeled by strain partitioning. Our approach integrates structural geology, metamorphic petrology and geostatistics to understand the spatial concentration of metals in the crust during deformation.

The structural control of mineral deposits

Structural control is the combined effect of rock fabric, deformation, and metamorphic conditions on concentrating and localizing metals within the crust. This includes how fabric orientation, kinematics, and topology, including fracture or fault networks, govern fluid flow pathways and sites of mineral precipitation, and how deformation conditions, such as strain geometry, vorticity, deviatoric stress, and deformation rates, collectively control the evolution of permeability and the redistribution (remobilization) of material during both brittle and ductile processes. At the same time, metamorphic parameters (pressure, temperature, and fluid composition) regulate metal solubility, transport, and precipitation. Structural control therefore encompasses both the spatial localization of mineralization and its genetic evolution, whether formed during a single event or through multiple deformation and remobilization cycles. Predicting the location of gold mineralization thus requires a holistic understanding of the interplay between deformation, metamorphism, alteration, and fluid flow.

Hypothesis testing

Fluids flow along a pressure (stress) gradient. For fluids to flow in the deep crust, deformation is required produce permeability. In Stephan et al. (2025), we suggest that large igneous bodies act as rigid competent bodies during deformation in Archean granite-greenstone belts, causing strain partitioning in surrounding metavolcanic rocks. Depending on the stress field orientation, strain partitioning creates localized sites with contraction (higher mean stress) and dilation (lower mean stress). This provides a testable mechanism linking lithological heterogeneity, deformation, and fluid flow to gold localization.

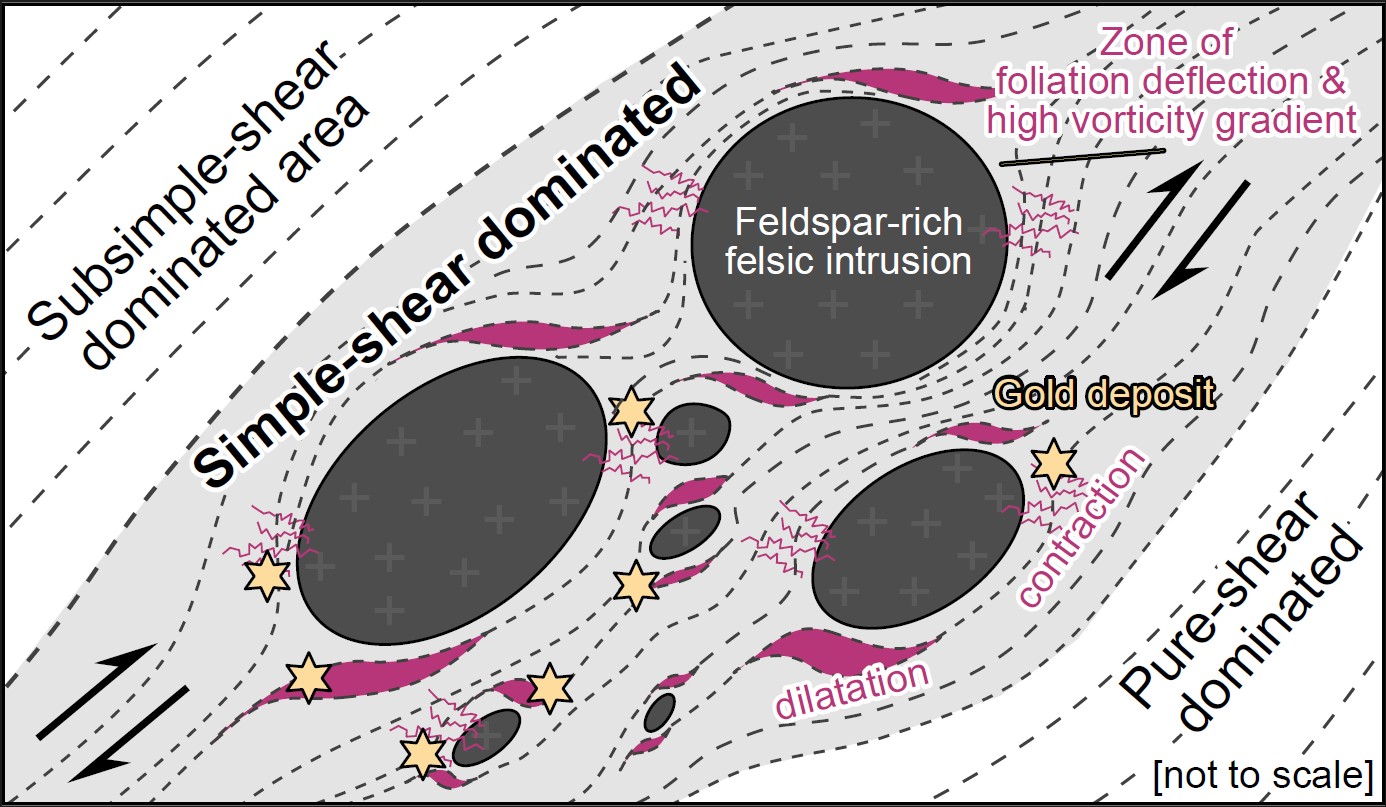

Releasing bends are zones of dilation with lower mean stress which direct fluid flow and thus can localize gold mineralization. From Stephan et al. (2025).

Our integrated approach

We use a integrated approach of these tools:

• Field work to measure orientation and kinematics of the deformation

• Microstructural analysis and Electron backscatter diffraction (EBSD) to constrain deformation conditions

• Vorticity analysis to constrain the geometry of strain

• Geochemistry and metamorphic petrology (conventional geothermobarometry and thermodynamic modelling) to constrain ambient pressures, temperatures and the fluid composition

• Geochronology (Re-Os molybdenite, U-Pb zircon/titanite/apatite/monazite) to constrain timing and rates of deformation

• Geostatistics to identify spatial correlations of these constraints

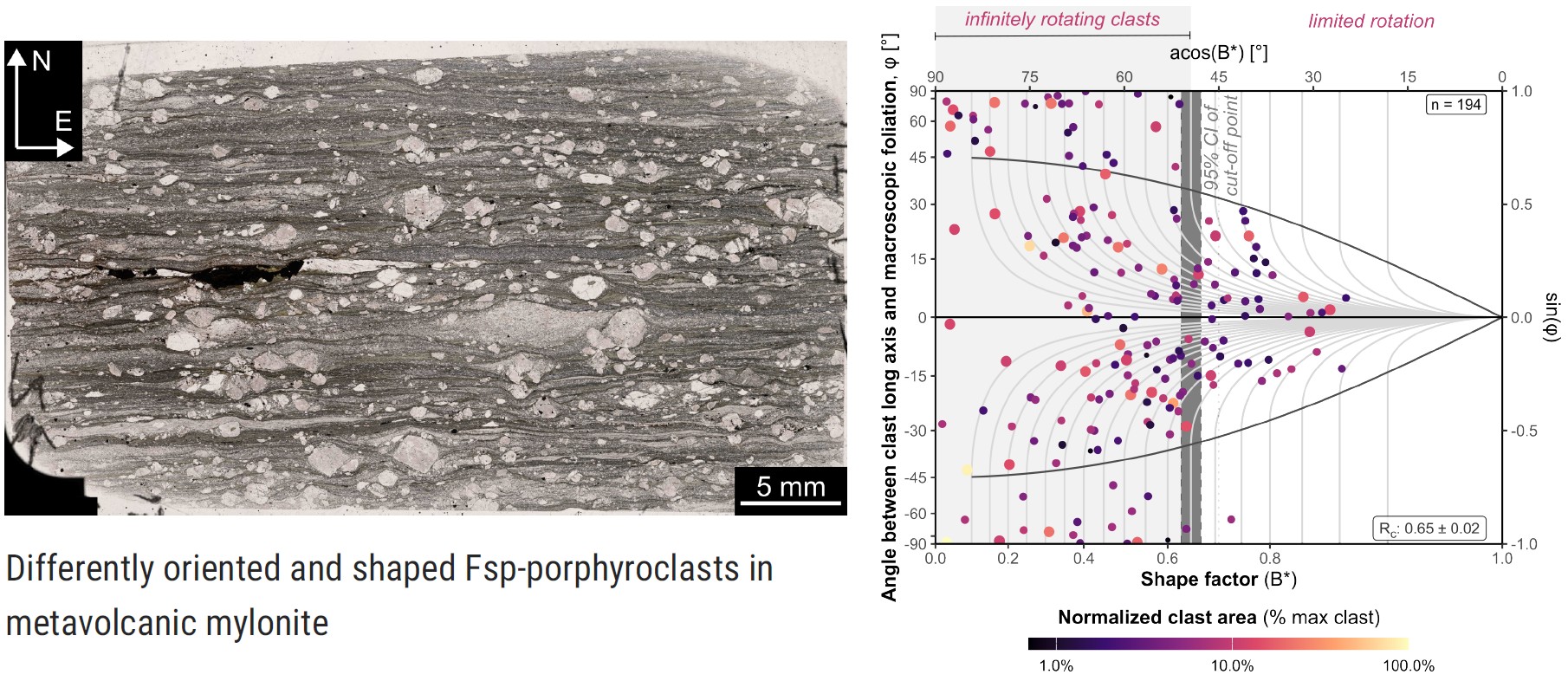

Vorticity analysis using the rotating prophyroclast method.

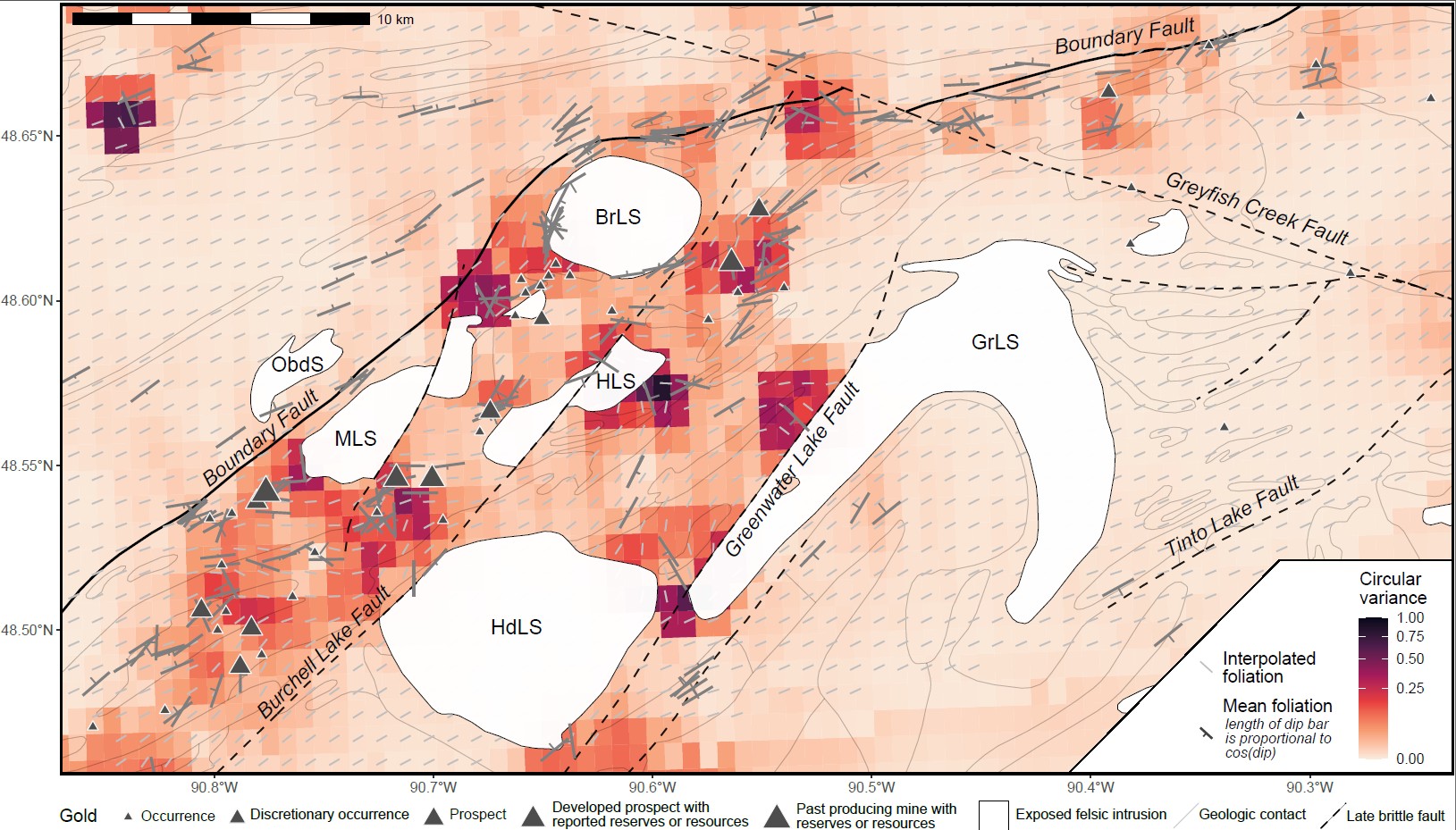

Strain partitioning is often related to releasing or restraining bends. This zones can be mapped through foliation deflection and vorticity changes. From Stephan et al. (2025), Fig. 9.

References

Stephan, T., Phillips, N., Tiitto, H., Perez, A., Nwakanma, M., Creaser, R., & Hollings, P. (2025). Going with the flow — Changes of Vorticity Controls Gold Enrichment in Archean Shear Zones (Shebandowan Greenstone Belt, Superior Province, Canada). Journal of Structural Geology, 105542. https://doi.org/10.1016/j.jsg.2025.105542
